Ductless Systems

Carrier Infinity® Residential Series Ductless

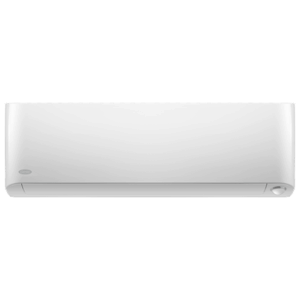

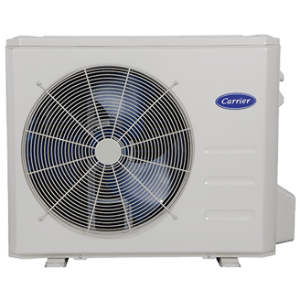

At 42 SEER, there's nothing more efficient when paired with its outdoor single zone counterpart 38MPRA. The High Wall is flexible to fit any application from 38MGRA single zone to the 38MGR multi-zone system. Talk about controllability, the new 40MPHA indoor unit features either built-in Wi-Fi^® that gives you control from virtually anywhere or compatibility with third party thermostats when the 24V Interface is installed. The High Wall also offers a Relative Humidity Sensor to customize the humidity level for more comfortable air and an occupancy sensor that senses a person in a room and can direct airflow either toward or away from that person.

Features

• Available in 208/230V
• Sizes: 09 / 12
• Follow Me (senses temperature at handheld remote)
• Heating Setback (46° F Heating Mode)
• Up-down / right-left louver control (fixed or swing)
• Relative Humidity Sensor
• Intelligent Eye (occupancy sensor)
• Built-in Wi-Fi^®
• ECO Mode
• Quiet indoor operation, as low as 29 dB(A)
• Aluminum Golden Hydrophilic pre-coated fins
• 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration

Carrier Performance™ Residential Series Ductless

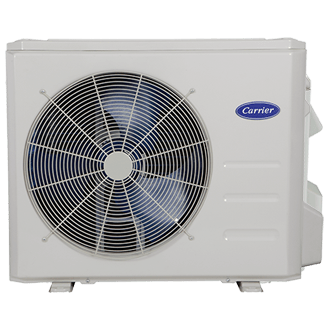

Designed for versatility and year-round comfort, the 38MAR achieves full heating capacity even as temperatures outside dip to 5° F (with the right combination of model size and matched indoor unit). This quiet, compact heat pump pairs with a variety of indoor units for a budget-friendly and flexible solution to your duct-challenged comfort needs. Part of our Performance™ Series, this model really delivers with features like variable speed operation for extra efficiency and reduced sound.

Features

• 100% Heating Capacity at 5° F (-15° C)
• Inverter Compressor
• Up to 25.0 SEER cooling efficiency
• Up to 12.0 HSPF heating efficiency
• Available in 115V and 208/230V
• Built-in basepan heater
• Piping length 82-164' depending on unit capacity
• Refrigerant leakage detection
• Condenser high-temperature protection
• Quiet outdoor sound operation, as low as 52.5 decibels
• 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration

Carrier Performance™ Residential Series Ductless

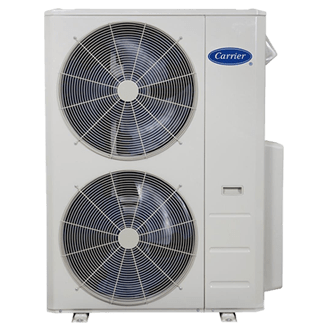

If you happen to live in a home without ductwork or have a converted area for a living/working space, you'll appreciate this multi-zone heat pump. The MGR System can provide year-round comfort, cooling for those hot summer days and warmth the rest of the year, even when temperature dips down to 5° F at full heating capacity (with the right size and system combination).

As a multi-zone, you can use up to five multiple style indoor units supported by just this one efficient, outdoor Inverter compressor unit. For quiet comfort in a multi-space application, it can't be beat.

Features

• 100% Heating Capacity at 5° F (-15° C) (Sizes 24 to 36)
• Inverter Compressor
• Up to 23.8 SEER cooling efficiency
• Up to 10.5 HSPF heating efficiency
• Sizes: 18 / 24 / 30 /36 / 48
• Available in 208/230V
• Built-in Basepan Heater
• Connects two to five multiple style indoor units (Performance™) off a single outdoor unit
• Condenser high temperature protection
• Refrigerant leakage detection
• Quiet outdoor sound operation, as low as 62 decibels
• Total piping length 131 ~ 328 ft. (40 ~ 100 m) depending on unit capacity
• 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration

Carrier Performance™ Residential Series Ductless

Performance™ Series ductless systems offer that perfect balance between budget limits you may have today and your desire for energy savings and comfort options.

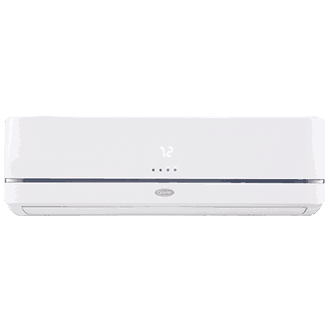

The 40MAQ High Wall indoor unit can be matched with the 38MAR heat pump as part of the MA Single Zone System or matched with the 38MGR heat pump as part of the MG Multi-Zone System.

Features

• Available in 115V and 208/230V
• Modes: Cool, Heat, Dry, Fan, Auto
• Four indoor unit fan speeds
• Turbo Mode
• Sleep Mode
• Follow Me (senses temperature at handheld remote)
• Quiet indoor sound operation, as low as 27 decibels
• Heating Setback (46° F Heating Mode)
• 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration

Control Standard Features

• Wireless Remote Controller standard
• Optional Wired Remote Controller (Timer Function)

Optional Features

• Condensate Pump (115V and 230V optional)
• Insulated 25' Lineset

Carrier Performance™ Residential Series Ductless

Performance™ Series Ductless Systems offer that perfect balance between budget limits you may have today and your desire for energy savings and comfort options.

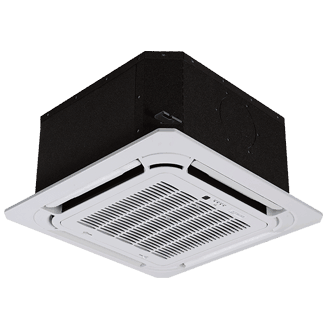

The Carrier Performance™ Series 40MBCQ Cassette blends into your over-head space to deliver quiet, efficient comfort to your new or remodeled space. The perfect complement for either a single or multi-zone ductless system, it offers the convenience of a temperature-sensing handheld remote and customized control over your comfort with three available fan speeds.

Features

• Sizes: 09 / 12 / 18
• Available in 208/230V
• Modes: Cool, Heat, Dry, Fan, Auto
• Vertical or horizontal installation
• Auto-restart function
• Louver control (fixed or swing)
• Three fan speeds
• Follow Me (senses temperature at handheld remote)
• Heating Setback (46° F Heating Mode)
• Quiet indoor operation, as low as 34 decibels
• Built-in condensate lift pump
• Aluminum Blue Hydrophilic pre-coated fins
• 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration
